Mediante la combinazione di uno sensore di impronte digitali BioCARDKey con tecnologia Active Capacitive Sensing e un lettore di smart card, SDK AET60 garantisce un ottima qualità di immagine delle impronte associate alla smart card.

AET60 BioCARDKey Software Development Kit

The software development Kit (SDK) enables you to efficiently develop new applications and systems or incorporate the AET60 BioCARDKey’s powerful smart card-fingerprint reader combination into your existing applications. Included in the package are sample cards, sample codes, tools and utilities, demo applications, and reference materials that let developers integrate fingerprint authentication into smart card-based applications very quickly even without an in-depth knowledge of biometrics.

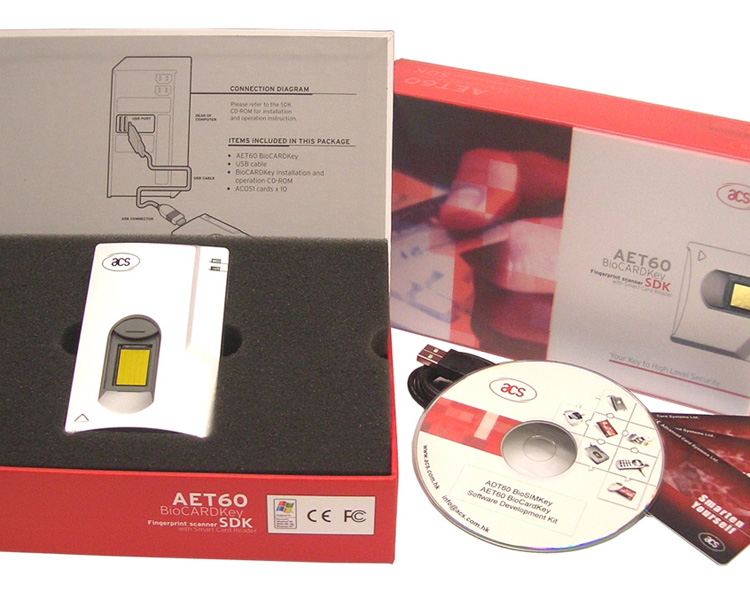

AET60 SDK Contents:

AET60 BioCARDKey Smart Card/ Fingerprint Reader
* Integrated fingerprint scanner/smart card reader
* Full-speed USB interface
* Requires no additional power supply
* Match-on PC – Template extraction and matching algorithms run within the local PC
* Large active sensor size – 12.8mm x 18.0mm
* High-resolution 508 DPI imaging
* Utilizes CMOS active capacitive pixel sensing technology, resulting to high-quality fingerprint images in any environment
* ISO7816 1/2/3- and PC/SC- compliant
* Supports all microcontroller cards, with T=0 or T=1 protocols
* Support ISO 7816 Class A, B and C (5V, 3V and 1.8V) cards
* Encrypted fingerprint template stored inside smart card
* Session key generation among smart card, BioCARDKey processor and host computer

10 Test Cardss
* 10 ACOS3 24-KB microprocessor-based plug-in cards

* Software drivers

* supports Windows 98, Me, 2000, XP and Vista

* Demo programs
* Arcade Demo - demonstrates the capability of BioCARDKey as an access control device
* o Simple AET60 Demo – With the Security Level control and Data Template display, shows the potential of the BioCARDKey as a device applicable to a multitude of uses

* Tools & Utilities
* PCSC CardTool - tests the protocol transfer between the reader and the PC
* PC/SC Learning Tool – shows you how to use the PC/SC API step-by-step and what parameters to use
* QuickView – checks for proper driver installation
* Scripting Tool – allows you to send a predefined sequence of smart card commands to your MCU cards

* Sample codes
* Demonstrate basic commands used to communicate between readers and cards
* Borland Delphi 7.0, MS Visual Basic 6.0 and MS Visual C++ 6.0

* Reference Manuals
* Technical Specifications
