ACR88 Handheld Portable Reader Software Development Kit

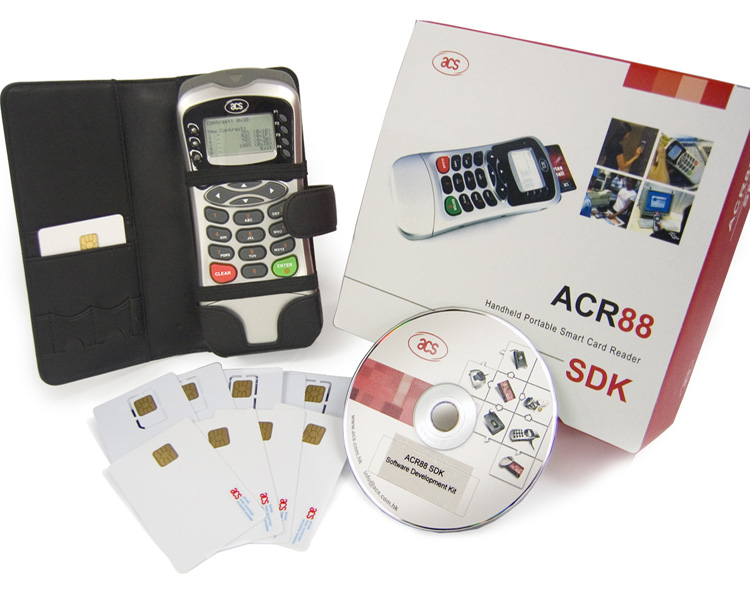

ACR88 is a versatile handheld portable reader, having a built-in keypad, LCD, bi-color LED and buzzer features. It can also host the feature of non-volatile memory to give better support to your system. In addition, its on-board memory enables future firmware and application enhancements that guarantee against obsolescence. ACR88 is designed for multi-applications, e.g. loyalty and healthcare. It is capable of performing secure authentication, displaying rich information from the card and conducting online or offline transactions. ACR88 is also programmable through ACR88 ScriptBuilder. Developers can now quickly build their own standalone applications according to easy-to-use and well-defined script commands provided by ACS. With ACR88, you can have full rein of realizing the limitless possibilities which your application will bring. The ACR88 Handheld Portable Software Development Kit (ACR88 SDK) enables effective development of customized applications and systems by using smart cards, card readers, and PCs. It can serve as an ideal training and development tool for those who are interested in knowing smart card technologies. ACR88 SDK contents: ACR88 Handheld Portable Smart Card Reader * Dual operation modes: * PC-linked: powered through USB * Standalone: powered through 3x AAA batteries * Accepts ISO-7816 Class A, B (5V & 3V) cards: 2 full-size cards and 3 SAM cards * Supports Memory-based smart cards (synchronous interfaces) * Ergonomic and highly durable keypad * Easy-to-read, graphical LCD with backlight * Monotone buzzer with software controlled ON/OFF * 3 bi-color LED * Real-time clock (RTC) with independent backup battery * Field upgradeable for firmware (requires a firmware upgrade cable) * User Programmable for standalone program by using easy-to-use script commands * Support Secure PIN Entry (SPE) * Tamper detection switch which acts as an indicator if there is any unauthorized intrusion * Hand-held size and weight * (Optional) Non-volatile memory for font storage 10 Test Cards * 5 ACOS3 24Kbyte Microprocessor-based cards * 5 ACOS6 8Kbytes SAM cards Cables * 1 Detachable USB cable * 1 Firmware upgrade cable (For firmware upgrade only) Case * 1 Leather case for better protection CD-ROM * Software drivers * supports Windows 98, Me, 2000, and XP * Demo programs * Multi-application Demo - demonstrates how the ACR88 device is used in real-world applications. It is a 3-part demo which includes the e-purse, healthcare card and taxi meter applications. * Functional Demo - demonstrates different API functions of the ACR88 device: e.g. Port, Device, LCD, Key Pad, Real-Time Clock, etc. * Taxi Payment Stand-alone Demo * Traffic Violation Stand-alone Demo * Tools & Utilities * CardTool - allows you to sedd commands to any PC/SC compliant smart card reader, and to any ISO 7816 T=0 compliant smart card. * PCSC learning - teaches you how to use the PC/SC APIs step-by-step and what parameters to use * QuickView - checks for proper driver installation * SmartFlash - allows you to upgrade the firmware version of the ACR88 device * ACR88 ScriptBuilder - allows you to create, compile and download scripts to the ACR88 device. * Sample Codes * demonstrates certain features of the ACR88 reader, e.g. Keypad, LED, LCD and Real Time Clock functions, and ACOS, memory and SAM cards * Delphi, Visual Basic, V.B.NET, Visual C++ & C# * Reference Manuals * Technical Specifications Cryptographic Smart Card Software Development Kit ACOS5 is an advanced cryptographic smart card that fully complies with ISO 7816-1/2/3/4/8/9. It is specially designed for public-key based applications and RSA public-key cryptographic operations which is essential in smart card PKI, digital signature and high level security requirements. ACOS5 provides 32KB EEPROM of secure data storage. Typical applications include payment system, e-banking, e-commerce, stock trading, network security, corporate identity, Microsoft windows logon, PKI application, and any application that uses CSP and PKCS#11 middleware layers. The ACOS5 Cryptographic Smart Card Software Development Kit (ACOS5 SDK) is designed for professional developers who are interested in developing cryptographic PKI applications supporting the ACOS5 Cryptographic Smart Cards. The Development Kit can greatly reduce your R&D time, cost and time-to-market. Your application can be developed over supplied PKCS#11 or CSP. Development is facilitated through the use of ACS unique tool - ACS Card Tool ?and it allows you to send commands directly to any PC/SC-compliant smart card readers and cards. ACOS5 SDK contents: ACR38 Smart Card Reader * USB full speed interface to PC with simple command structure * Read and write all microprocessor cards with T=0 or T=1 protocols * Support SLE 4418/28/32/42/5542 memory cards * Support most common memory-based smart cards, including I2C bus protocol cards (from 1k bits up to 1024k bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608) * Short Circuit Protection * Certificate of conformance: EN 60950/IEC 60950, ISO 7816, PC/SC, CE, FCC, Microsoft WHQL, EMV certified * ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards ACR38T Plug-in (SIM-sized) Smart Card Reader * Full speed interface to PC with simple command structure * Read and write all microprocessor cards with T=0, T=1 protocols * Support Plug-in SIM-sized card * Support SLE 4418/28/32/42/5542 memory cards * Support most common memory-based smart cards, including I2C bus protocol cards (from 1K bits up to 1024K bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608) * Short Circuit Protection * Certificate of conformance: EN 60950/IEC 60950, ISO-7816, PC/SC, CE, FCC, Microsoft WHQL, EMV certified * ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards CryptoMate USB PKI Token * 32K bytes secured storage * Storage of X.509 certificate, private/public keys * On-board 512-,1024, and 2048- bit RSA algorithm * High quality on-board key pair generation * CSP middleware, supports Microsoft Internet Explorer, Outlook, Outlook Express * PKCS#11 middleware, supports Netscape, Mozilla * Plug & Play USB full speed(12Mbps) 10 Test Cards * 5 ACOS5 Cryptographic Smart Cards * 5 ACOS5 Cryptographic SIM-sized plug-in Smart Cards CD-ROM * Drivers * ACR38 and ACR38T PC/SC drivers ?supports Windows 98, NT, 2000, 2003, XP, Vista, XP 64, Vista 64, and 2003 x64 * CryptoMate driver - supports Windows 2000, 2003 and XP * CSP middleware * enables your ACOS5 cards, Cryptomate to work with Microsoft browsers, email clients and custom build applications. * PKCS#11 middleware * enables your ACOS5 card and reader to work with Netscape browsers, email clients and custom build applications. * Smart Card Certificate Manager * allows you to manage your electronic Certificates in your ACOS5 Cryptographic smart card. * ACS Card Tool * allows you to send commands directly to your any PCSC-compliant smart card reader and cards including ACOS5 cards. * Sample Codes * Visual Basic 6.0, Visual Basic.NET, Visual C++, Borland Delphi, Java, C# * Reference Manual * Technical Specifications |
|
